Jeep Wrangler TJ Classic 4x4

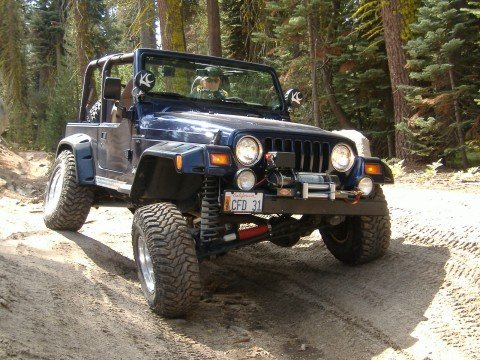

Lifted Jeep Wrangler TJ Offroad Extreme!
Jeep Wrangler TJ available as 1997 to 2006 models featured an all round coil-spring suspension and a return to the classic CJ's round headlamps. If you want a taste of the original Jeep the Jeep Wrangler TJ is a direct descendant and a great choice for the beginner to the seasoned offroader.
Previous
Next
Specs
Performance
- Engine - Standard: Inline 4 - 151 cid (2.5 L) -> 148 cid (2.4 L)
- Engine - Optional: Inline 6 - 242 cid (4 L)
- Hp: 190 (4 L 2000-2006)
- Torque: 235 ft/lbs (318 N-m) @ 3,200 RPM (4 L 2000-2006)
- Transmission: 5-speed manual (AX-5 AX-15 NV1500/NV2550 NV3550 NSG370)
- Transmission: 3-speed automatic (30rh 32rh)
- Transmission: 4-speed automatic (42rle)
- Turning radius: 33.5'-36' feet (10.2m-11m)
Good performance, especially with the 4L engine.
Size & capacity
- Dimensions: Wheelbase = 93.4″ (237cm) - Track = 57.8 - 58.5″ (147cm-149) - Overall Length = 155.4″ (395cm) - Width = 66.7″ (169cm) - Height = 70.8″ (180cm)
- Weight: 3,092-3,832 lbs (1402-1738 kg)
- Seating: 4
- Towing capacity: 2000 lbs (907 kg)
- Payload rating: 800 lb (363 kg)
- Wheel bolt pattern: 5 x 4.5
Short and light weight.
Offroad
- Ground Clearance: 8.6″ (22cm)
- Suspension front: coil springs
- Suspension rear: coil springs
- Axles front: Dana 30 - Dana 44 (Rubicon)
- Axles rear: Dana 35c - Dana 44 (6 cyl and Rubicon)
Great suspension and strong axle choices.
Modification / Lifting tips
Try to find a 4.0L TJ to start your project. A Rubicon would be the best, but they are also more expensive.
Dana 44 front and rear is great for a Jeep Wrangler TJ on 35 inch tires. You need about a 4-6 inch lift to fit the bigger tires. Get the gears lowered to 4:56 and consider air-lockers for serious offroading. A winch would be nice also :)
Dana 60 front and rear for anything bigger!
