Range Rover Air Suspension

Faskit for Range Rover

At first I had an Efi gasoline Classic which gave me very good moments for 15 years and which I still keep. Later I acquired a New Range P38 and the truth is that I was desperate with the air suspension. My Range spent a total of 70 days in the repair garage throughout 2 years due to the air suspension. The problems were constant. And the worse part is than they were not solved!

I was already determined to sell it and end the nightmare when I discovered Faskit. Everything changed. For a start I could have the car with no worries while the problem was solved. It gave me a chance to think about it. They had changed the pneumatic springs already, the Ecu and now the valve unit had to be changed. Faskit has given me confidence in my Range and that permits me to travel even to Africa if I want to! Nothing happens. I can inflate the suspension even in the middle of the desert … with the system compressor. And that in case there is a gas station nearby.

The air suspension is a technological marvel.

It produces a unique traction feeling on all terrains. When working correctly, it offers the most luxurious and comfortable 4x4.

But many owners know from experience that once that sophisticated suspension fails… they have a problem that makes them call a tow truck and abandon their beloved vehicle at the nearest garage.
Some even decide to reject the air suspension and use the traditional spring suspension.

At that moment they are abandoning a magnificent suspension and leave their beloved car without an argument for future sale and will have to communicate it to the buyer.

With Faskit it is not necessary to reject air suspension and you will have a diagnostic system for malfunctions and your confidence will be improved since you won't have to call the tow truck for that reason.

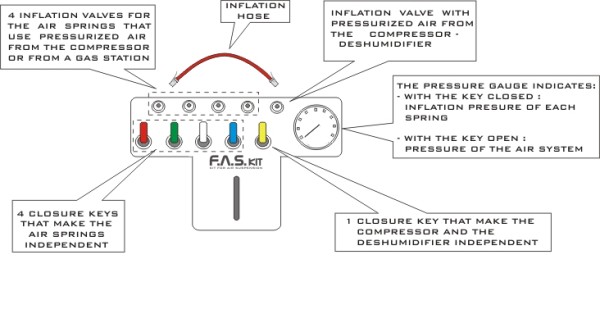

Faskit is put in the air line between the air suspension springs and its valve box. Thus it allows operation freeing each pneumatic spring individually and inflate the springs by means of the compressed air of the vehicle coming from the compressor or in a gas station.

Faskit does not reduce the reliability of the air suspension of the vehicle. On the contrary. You have a trustworthy system which gives you security and helps you in the diagnostic of failures. And most importantly: it prevents you from becoming stranded on the highway or the mountain!

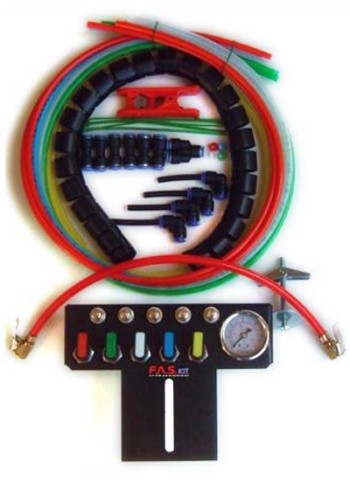

The installation of Faskit uses quick adjust connectors which form a tight seal around the diameter of the air tubes. To ensure this seal, it is important to insert the tubes correctly by pressing sufficiently.

The cutting tool enables the tubes to be cut to the required length.

The connectors that we provide with Faskit are designed so that no tools are required for its installation. The connections! are made by pushing the air lines into the quick adjust connectors until the air line is joined automatically.

The air lines must be properly immobilized as far as possible to avoid any tension or inadequate movement.

Be careful that they are located far from hot or moving parts. It is important to avoid extreme angles in the connection of the air lines. Tension in the connection could deform the air line and prevent a correct seal.

The Faskit connection is made only once and it is not necessary to remove it ever again. If a failure takes place you only have to operate on the closure keys and inflate the suspensions manually and function in this way indefinitely or until you decide to repair it.

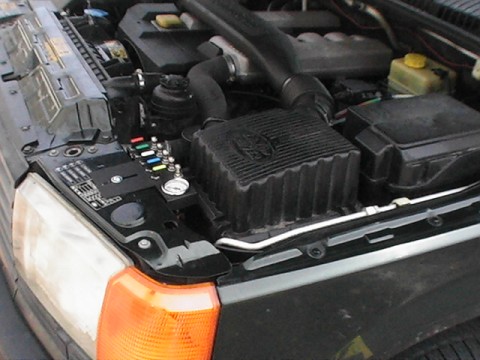

No special tool is required and it integrates perfectly in the engine compartment. The factory suspension hardware is left intact and operational.

Faskit enables independent inflation of each spring based on the load and its distribution. It is a solution to recover the height of the car once a failure takes places in the original system. When the failure is repaired the original system is restored easily, just turning the closure keys to the “open” position.

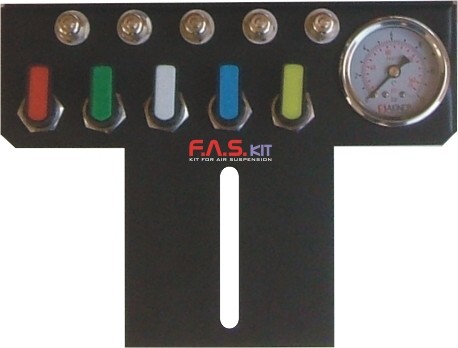

It supplies compressed air, as well as a pressure gauge to control the operating pressure of the system.
The site has a video to see the easy installation

More information : http://www.opcionesavanzadas.com



Alejandro Linati is an all Terrain Rally Driver,
participant in 5 Spanish Championships and finalist in Paris Dakar Rally,
ex-Trial pilot, Author of "Initiation to Moto Cross, Trial And All-Terrain"
